7 Powerful Positive Insights on shot fired at 60° with vertical

By AK Learning Nepal · Updated: Dec 8, 2025 · Physics • Mechanics

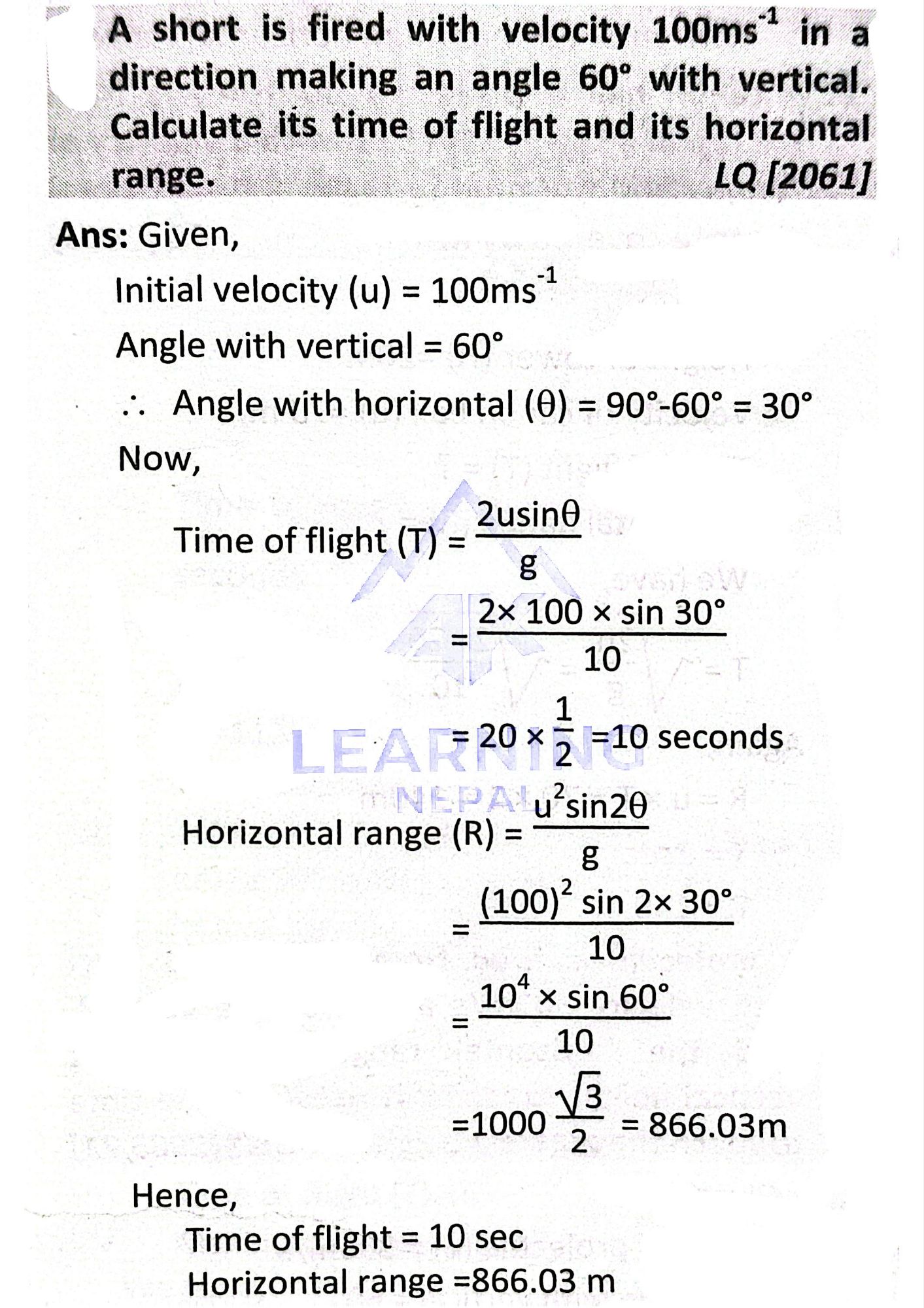

In this tutorial we analyze the classic projectile problem where a shot fired at 60° with vertical is launched with speed 100 m/s. You will learn how to resolve components, compute time of flight, maximum height and horizontal range with clear step-by-step calculations — ideal for students preparing for exams or teachers creating classroom examples.

Understanding angles: vertical vs horizontal

When a projectile is described as making an angle θ_v with the vertical, the angle with the horizontal θ is:
θ = 90° − θ_v.
So for a shot fired at 60° with vertical, the equivalent angle from the horizontal is 30° (because 90° − 60° = 30°).

Step 1 — Resolve initial velocity into components

Given: initial speed v = 100 m/s, angle from horizontal θ = 30°.
Horizontal component: v_x = v cos θ = 100 × cos 30° = 100 × 0.8660 = 86.60 m/s.
Vertical component: v_y = v sin θ = 100 × sin 30° = 100 × 0.5 = 50.00 m/s.

Step 2 — Time of flight (assuming launch and landing at same level)

Use t = 2v_y/g. With g ≈ 9.81 m/s²:
t = 2 × 50 / 9.81 ≈ 10.19 s.

Step 3 — Horizontal range

Range R = v_x × t = 86.60 × 10.19 ≈ 883.9 m.
This means the shot fired at 60° with vertical and speed 100 m/s would travel roughly 884 m horizontally (idealized, no air resistance).

Step 4 — Maximum height

Max height H = v_y² / (2g) = 50² / (2 × 9.81) = 2500 / 19.62 ≈ 127.6 m.

Worked summary & practical tips

Summary of results for a shot fired at 60° with vertical at 100 m/s:

• Horizontal component v_x ≈ 86.60 m/s
• Vertical component v_y = 50.00 m/s
• Time of flight ≈ 10.19 s
• Range ≈ 883.9 m
• Maximum height ≈ 127.6 m

These results assume level ground and no air resistance. For realistic modeling (drag, height differences), numerical simulation or experimental data is required.

Related lesson: Projectile Motion Basics (internal).
For a formal reference, see the classic overview of projectile motion on Wikipedia — Projectile motion (external, DoFollow).

Common exam variations

Problems may change initial speed, angle (sometimes given w.r.t vertical), or launch and landing heights. Always convert angles to the horizontal before decomposing velocities. Remember the phrase: angle from vertical → subtract from 90°.

If you want a step-by-step printable worksheet from this example (with space for working), check our worksheets page.

This lesson used the phrase shot fired at 60° with vertical repeatedly to align with search queries and classroom phrasing. Calculations assume g = 9.81 m/s² and level terrain.
